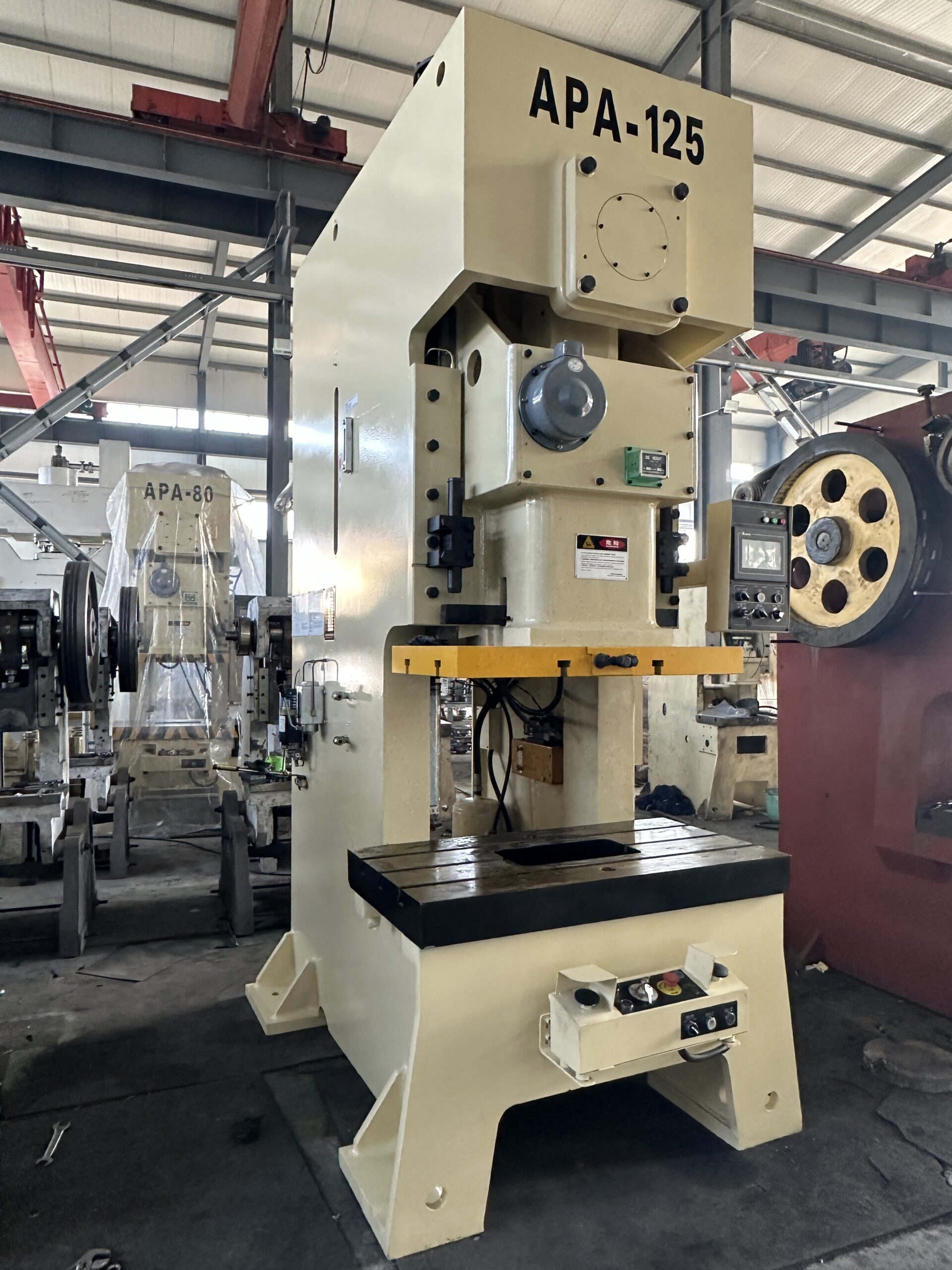

125-ton pneumatic stamping machine
125 ton pneumatic stamping machine provides super strong stamping machineing pressure and excellent performance for heavy-duty applications.
The 125 ton pneumatic stamping machine has enormous stamping capacity, enabling it to effortlessly and accurately complete the most challenging metal processing tasks with high efficiency. Whether it is stamping thick metal plates, forming complex components, or cutting complex shapes, this machine can provide consistent and accurate results, thereby maximizing productivity and minimizing material waste.
The pneumatic power system of this stamping machine ensures fast cycle time and reliable performance, achieving seamless integration with large-scale production operations. Its sturdy structure and durable components have been designed to withstand the requirements of continuous operation in harsh industrial environments, ensuring minimal downtime and maximum throughput.
Ease of use is a key feature of the 125 ton pneumatic stamping machine, as it has a concise control interface that simplifies setup and operation. Advanced safety features, such as overload protection and emergency stop mechanisms, prioritize operator safety and comply with industry regulations and standards.
In summary, the 125 ton pneumatic stamping machine combines power, accuracy, and reliability, making it an indispensable asset for metal manufacturing professionals seeking excellent performance and operational efficiency.
APA press standard configuration table | |||
| Serial number | Project/part description | Brand/Description | Country/region/standard |
| 1 | Crank shaft | 45#forging/40cr,tempering | CHINA |
| 2 | Frame steel plate | Baosteel | CHINA/Annealing process |
| 3 | Gear set | Grinding process of tooth surface | German NLES equipment |
| 4 | clutch | OMPI | Shanghai |
| 5 | Double solenoid valve | TACO | Japan |
| 6 | PLC programming controller | Delta | Taiwan |
| 7 | Touch screen/encoder | Delta | Taiwan |
| 8 | Overload protection device | Kenya | Taiwan |
| 9 | relay | Schdeider | France |
| 10 | bearing | NSK | Japan |
| 11 | Oil seal | NOK | Japan |
| 12 | Two-handed switch | FUJI | Japan |
| 13 | Push button switch | Schdeider | France |
| 14 | contactor | Schdeider | France |
| 15 | Multistage switch | Schdeider | France |
| 16 | Proximity switch | OMRON | Japan |
| 17 | Electric yellow oil pump | Nanfangbengye | Hangzhou |
| 18 | Hand oiler | Hongniao | Zhejiang |
| 19 | Main motor | Xinyu | Taiwan/China |
| 20 | Frequency changer | Huayuan | Shenzhen |
| 21 | Second fall protection device | OMRON | Japan |
APA-125tonTechnical parameter
| Technical parameter | unit | APA-125 |
| form | V型 | |
| Nominal force | KN | 1250 |
| Nominal force travel | mm | 6 |
| Number of trips | Times/min | 30-60 |
| Slide travel | mm | 180 |
| Maximum loading height | mm | 360 |
| Loading height adjustment | mm | 80 |
| Slider bottom size （left and right×before and after×thickness） | mm | 650*470*80 |
| Slider bottom size （left and right×before and after×thickness） | mm | 1150*600*110 |
| working desk size （left and right×before and after×thickness） | mm | 400*200 |
| Diameter of blanking hole of worktable（left and right front and back） | mm | Φ50 |
| Die handle hole diameter | kw*P | 11*4 |
| Main motor power | kg/cm2 | 6 |
| air pressure | mm | 1900*1300*3200 |
