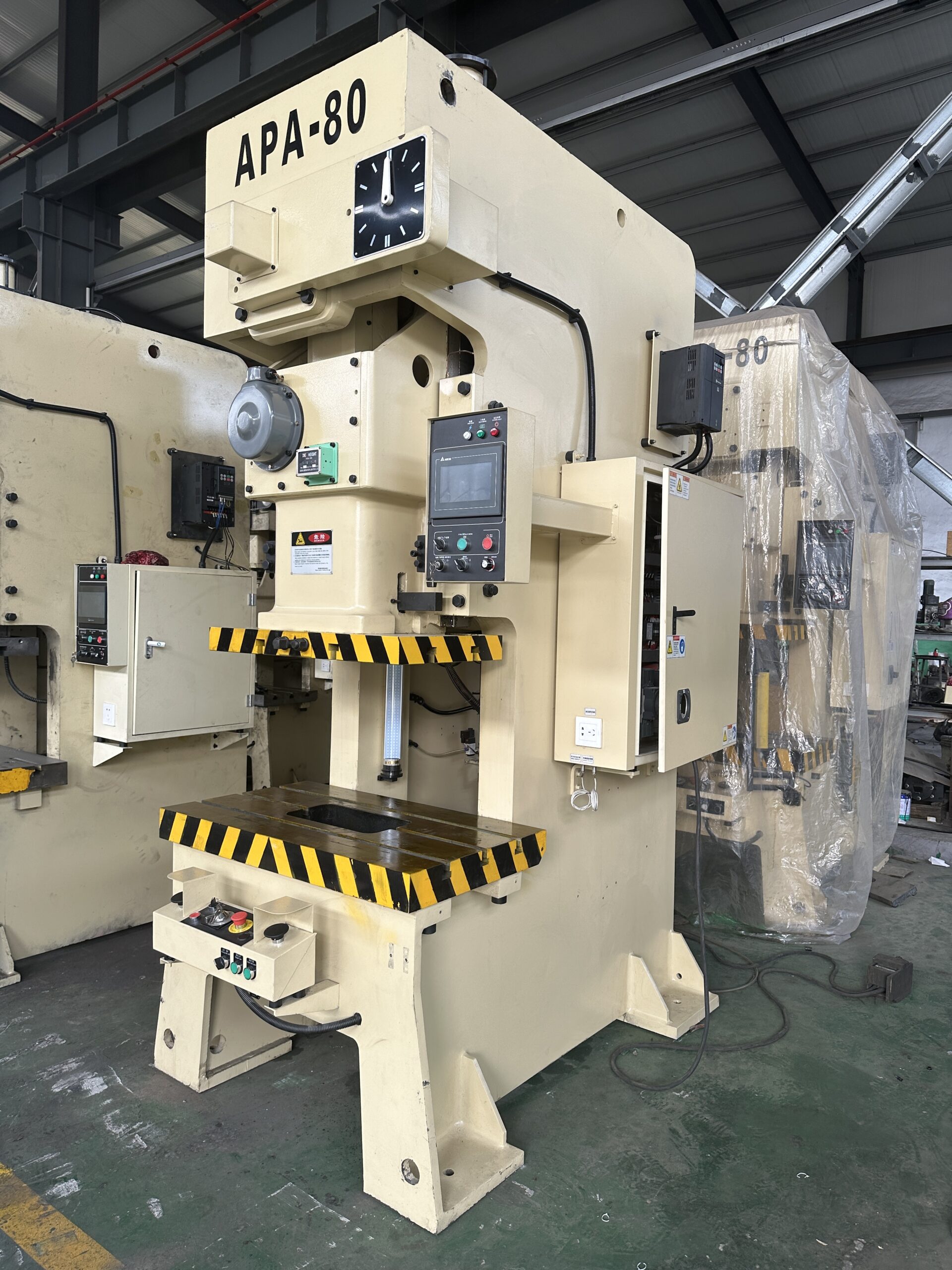

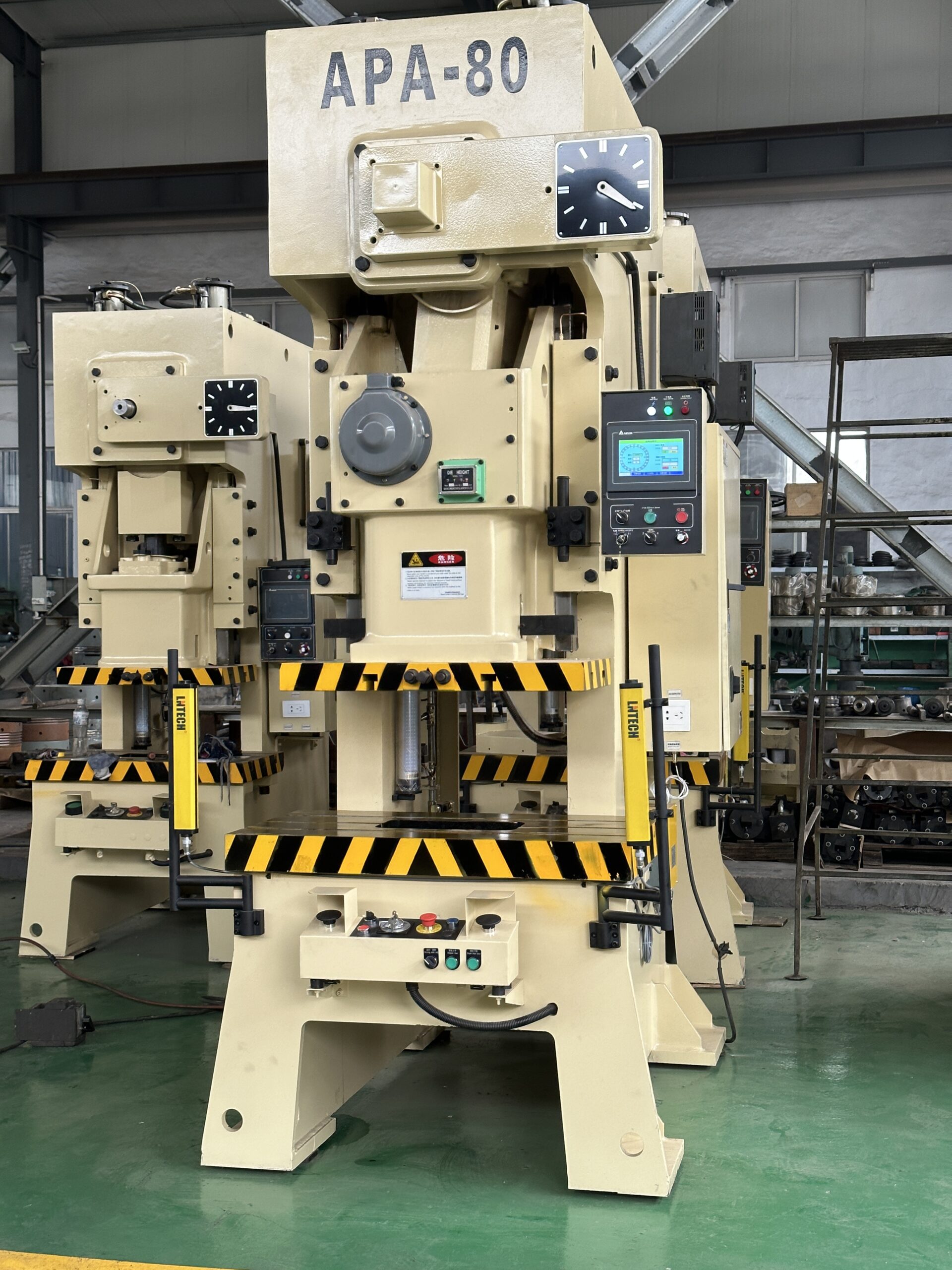

80-ton pneumatic stamping machine
80 ton pneumatic stamping machine represents the pinnacle of power and performance in the field of metal manufacturing equipment, providing unparalleled stamping capabilities and sturdy reliability.
One of the characteristics of the 80 ton pneumatic stamping machine is its powerful stamping machineing pressure, which can easily handle heavy metal processing tasks. Whether it is stamping, cutting, or forming operations, the 80 ton pneumatic stamping machine can provide precise and efficient results, thereby optimizing the production process and ensuring high-quality final products.
The pneumatic power system of the 80 ton pneumatic stamping machine ensures fast cycle time and reliable performance, which helps improve the productivity of metal manufacturing operations. Its sturdy structure and durable components are designed to withstand continuous operation in harsh industrial environments, minimizing downtime and maximizing throughput.
Easy operation is another key aspect of the 80 ton pneumatic stamping machine, with intuitive control and user-friendly interface, simplifying setup and programming. In addition, comprehensive safety functions such as overload protection and emergency stop mechanisms prioritize operator safety, ensuring a safe working environment and compliance with industry regulations.
APA press standard configuration table | |||
| Serial number | Project/part description | Brand/Description | Country/region/standard |
| 1 | Crank shaft | 45#forging/40cr,tempering | CHINA |
| 2 | Frame steel plate | Baosteel | CHINA/Annealing process |
| 3 | Gear set | Grinding process of tooth surface | German NLES equipment |
| 4 | clutch | OMPI | Shanghai |
| 5 | Double solenoid valve | TACO | Japan |
| 6 | PLC programming controller | Delta | Taiwan |
| 7 | Touch screen/encoder | Delta | Taiwan |
| 8 | Overload protection device | Kenya | Taiwan |
| 9 | relay | Schdeider | France |
| 10 | bearing | NSK | Japan |
| 11 | Oil seal | NOK | Japan |
| 12 | Two-handed switch | FUJI | Japan |
| 13 | Push button switch | Schdeider | France |
| 14 | contactor | Schdeider | France |
| 15 | Multistage switch | Schdeider | France |
| 16 | Proximity switch | OMRON | Japan |
| 17 | Electric yellow oil pump | Nanfangbengye | Hangzhou |
| 18 | Hand oiler | Hongniao | Zhejiang |
| 19 | Main motor | Xinyu | Taiwan/China |
| 20 | Frequency changer | Huayuan | Shenzhen |
| 21 | Second fall protection device | OMRON | Japan |
APA-80tonTechnical parameter
| Technical parameter | unit | APA-80 |
| form | V型 | |
| Nominal force | KN | 800 |
| Nominal force travel | mm | 4 |
| Number of trips | Times/min | 35-80 |
| Slide travel | mm | 150 |
| Maximum loading height | mm | 340 |
| Loading height adjustment | mm | 80 |
| Slider bottom size （left and right×before and after×thickness） | mm | 560*420*70 |
| Slider bottom size （left and right×before and after×thickness） | mm | 1000*550*90 |
| working desk size （left and right×before and after×thickness） | mm | 360*180 |
| Diameter of blanking hole of worktable（left and right front and back） | mm | Φ50 |
| Die handle hole diameter | kw*P | 7.5*4 |
| Main motor power | kg/cm2 | 6 |
| air pressure | mm | 1800*1180*2980 |
