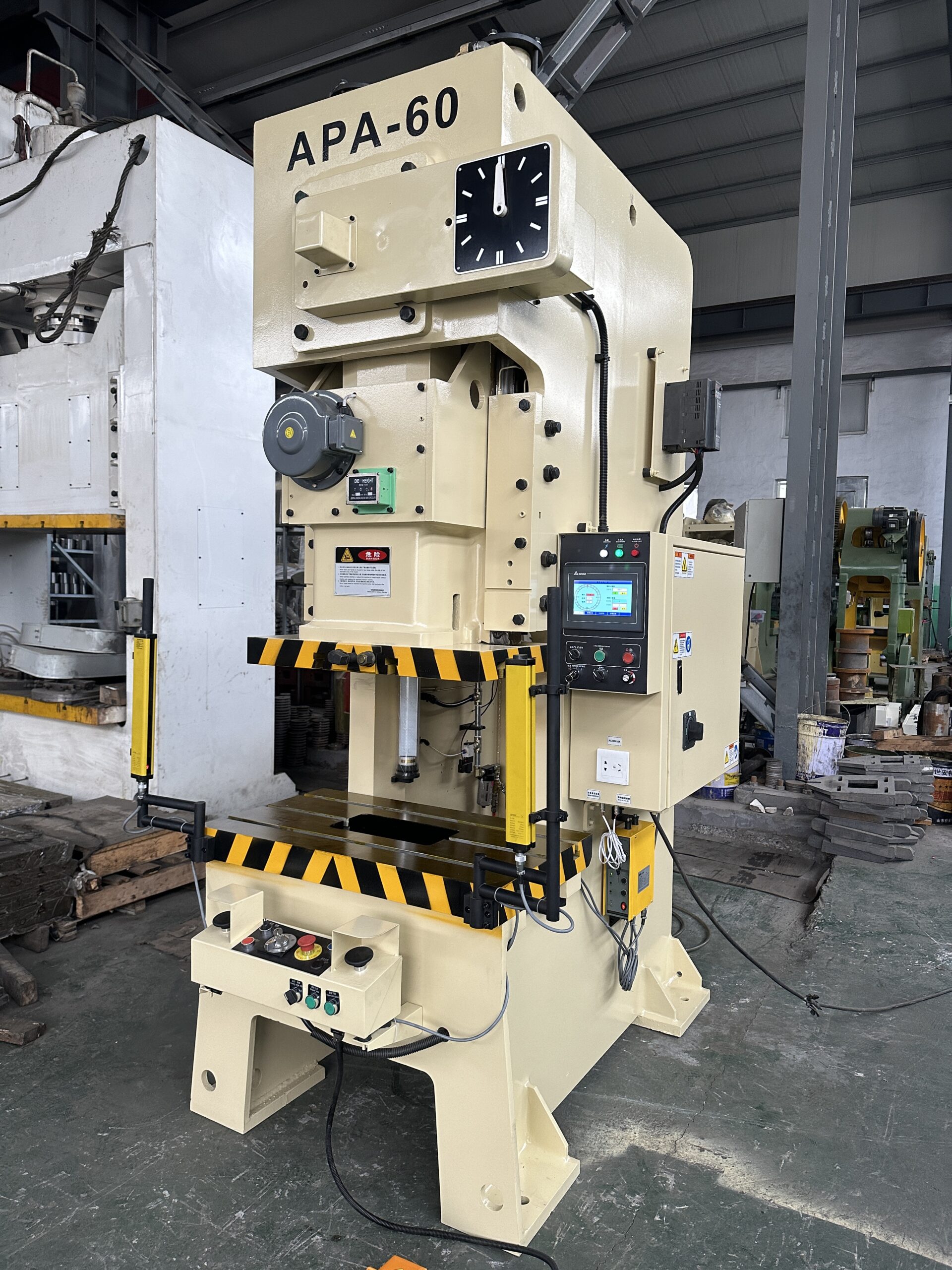

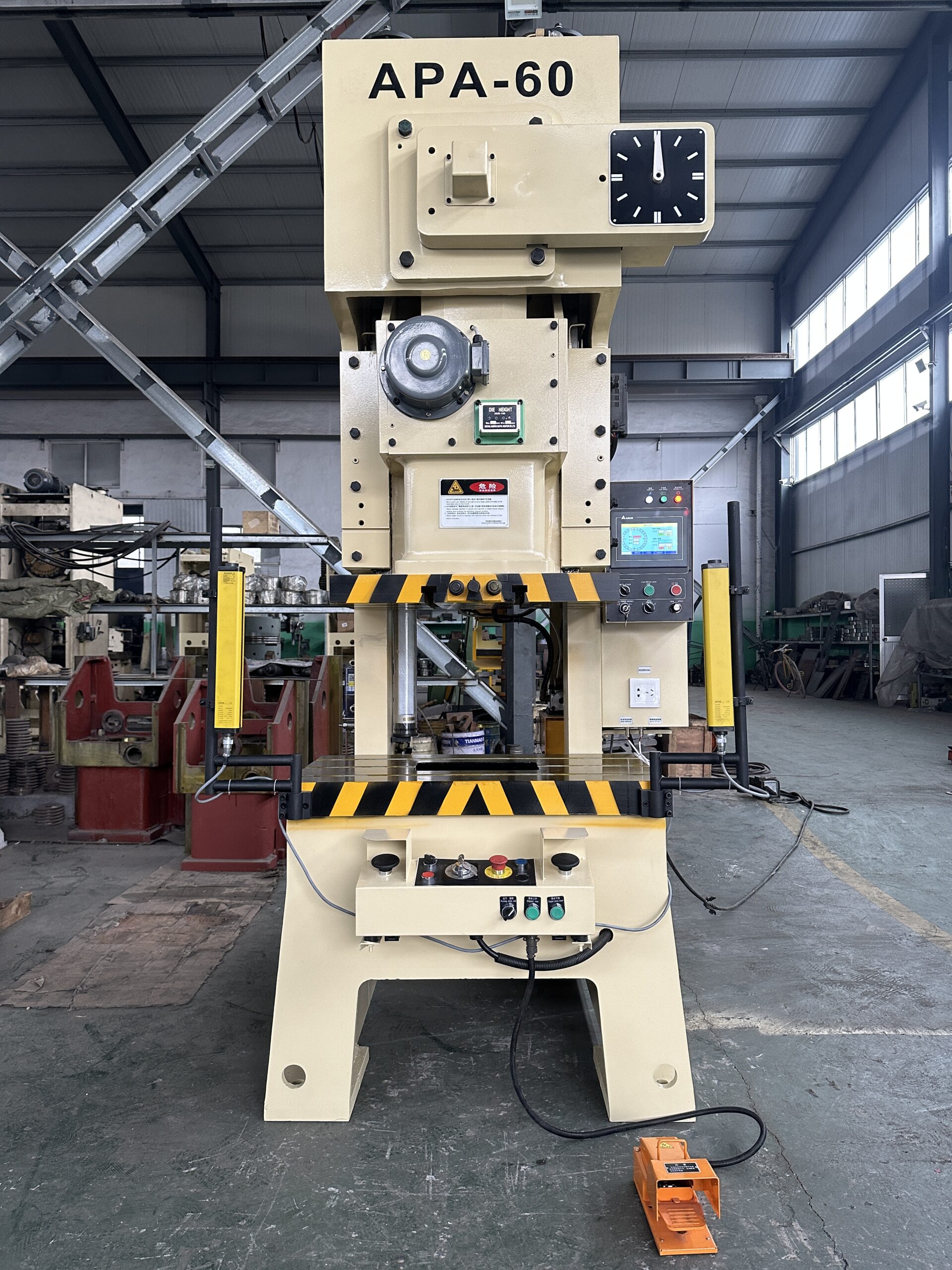

60-ton pneumatic stamping machine
The 60-ton pneumatic stamping machine press stands as a powerhouse in the realm of metal fabrication equipment, offering exceptional stamping machineing capabilities coupled with reliability and efficiency.
The 60 ton pneumatic stamping machine has excellent stamping machineing pressure and can complete most metal processing tasks. From precision stamping machineing to intricate forming operations, this machine excels in delivering accurate and high-quality results, thereby optimizing production processes and ensuring superior end products.
The pneumatic power system of this stamping machine press ensures rapid cycle times and consistent performance, contributing to enhanced productivity in metal fabrication operations. Additionally, its robust construction and advanced engineering make it suitable for continuous operation in demanding industrial environments, thereby minimizing downtime and maximizing output.
Ease of use is another hallmark of the 60-ton pneumatic stamping machine press, featuring intuitive controls and user-friendly interfaces that streamline setup and operation. Furthermore, comprehensive safety features such as overload protection and emergency stop mechanisms prioritize operator safety, aligning with industry standards and regulations.
APA press standard configuration table | |||
| Serial number | Project/part description | Brand/Description | Country/region/standard |
| 1 | Crank shaft | 45#forging/40cr,tempering | CHINA |
| 2 | Frame steel plate | Baosteel | CHINA/Annealing process |
| 3 | Gear set | Grinding process of tooth surface | German NLES equipment |
| 4 | clutch | OMPI | Shanghai |
| 5 | Double solenoid valve | TACO | Japan |
| 6 | PLC programming controller | Delta | Taiwan |
| 7 | Touch screen/encoder | Delta | Taiwan |
| 8 | Overload protection device | Kenya | Taiwan |
| 9 | relay | Schdeider | France |
| 10 | bearing | NSK | Japan |
| 11 | Oil seal | NOK | Japan |
| 12 | Two-handed switch | FUJI | Japan |
| 13 | Push button switch | Schdeider | France |
| 14 | contactor | Schdeider | France |
| 15 | Multistage switch | Schdeider | France |
| 16 | Proximity switch | OMRON | Japan |
| 17 | Electric yellow oil pump | Nanfangbengye | Hangzhou |
| 18 | Hand oiler | Hongniao | Zhejiang |
| 19 | Main motor | Xinyu | Taiwan/China |
| 20 | Frequency changer | Huayuan | Shenzhen |
| 21 | Second fall protection device | OMRON | Japan |
APA-60tonTechnical parameter
| Technical parameter | unit | APA-60 |
| form | V型 | |
| Nominal force | KN | 600 |
| Nominal force travel | mm | 4 |
| Number of trips | Times/min | 35-90 |
| Slide travel | mm | 120 |
| Maximum loading height | mm | 310 |
| Loading height adjustment | mm | 75 |
| Slider bottom size （left and right×before and after×thickness） | mm | 500*360*70 |
| Slider bottom size （left and right×before and after×thickness） | mm | 900*500*80 |
| working desk size （left and right×before and after×thickness） | mm | 320*160 |
| Diameter of blanking hole of worktable（left and right front and back） | mm | Φ50 |
| Die handle hole diameter | kw*P | 5.5*4 |
| Main motor power | kg/cm2 | 6 |
| air pressure | mm | 1595*1000*2800 |
